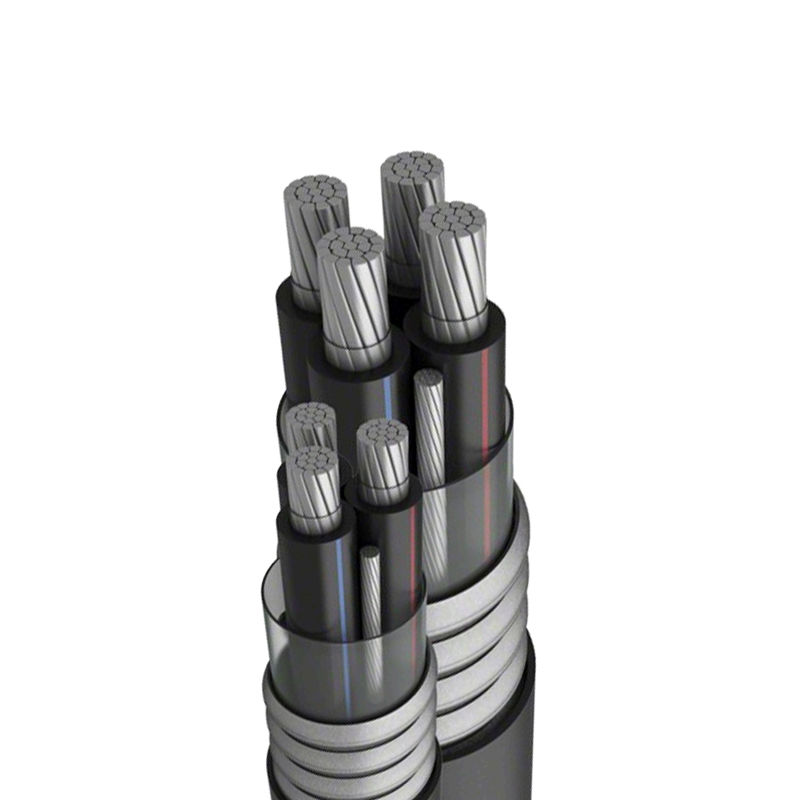

YJLHV 8030 Series Crucis Polyethylene Insulated Aluminium Alloy cable conexum

Accipere Free Custom Quote
Emitte consilium tuum a libero pretium album ad usus tuos formandam.

·YJLHV 8030 series aluminii mixturae funes

-YJLHV est alta flexibilitas aluminii mixturae generis 90℃ polyethylene insulae nuclei simplicis vel multi- nuclei aluminii mixturae funis.
-WDZA-YJLHV genus flammae retardat gradus A aluminium offensionis funis produci etiam potest secundum exigentias Lorem.

· Product vexillum

1.GB/T12706-2008 aestimavit intentione lkV(Um=1.2KV) ad 35KV(Um=40.5KV) exsertam rudentem insulatum et fortia
2.GB/T19666-2005 flame retardant and fire-resistant wire and cable general rules
3.Q/320282 DDF029-2012 cable cum 8000 serie aluminii mixturae conductoris
4.GB/T 31840-2015rated intentione 1KV(Um=1.2KV) ad 35KV(Um=40.5KV) aluminii mixturae core potentiae funem extrudendo

· Product features

1. 8030 series aluminii stannum conductoris a nobis elaboratum proprietates altae conductivity habet, repugnantia bona degenerationis cerae, flexibilitas alta, extensio, humilis repercussio et nexus stabilis, eiusque effectus theatrica experientias vexillum ASTMB800-05 excedit.
2. Alta vis 5000 series aluminii mixturae fortis et tenax est, cum bono flexione et praestanti observantia protegens;
3. Cable elementa gravia metallica non continet, tutelae environmentalis viridis, perficiendi flammae ardoris ad halogen-liberum humilis fumi genus flamma retardat A.
4. Funis domesticas collocari potest, in muro directe defossa et in arido ambitu cuniculi, leve pondus, excepto pontis institutionis impensa, etc.
5.Set idem perfomance.

Technical parametri mensa

·Tabula 1, YJLHV YJLHY-1 ~3kv aluminium mixturae fune parametri mensae physicae

Nominal sectionemem (mm²)	Appropinquate diam metra e (mm)							Pondere proxime funem (kg/km)
Nominal sectionemem (mm²)	2 Cores	3 Cores	4 Cores	3 1 Cores	5 Cores	4 1 Cores	3 2 Cores	2 Cores	3 Cores	4 Cores	3 1 Cores	5 Cores	4 1 Cores	3 2 Cores
10	17.6	20.5	21.9	21.3	23.4	23.0	22.4	132	174	220	203.1	272	253	237
16	19.7	22.7	24.3	23.7	26.1	25.8	25.2	180	242	307	285	359	359	337
25	21.7	26.1	28.2	27.3	30.4	29.8	28.9	260	355	454	418	529	529	489
35	24.9	28.3	30.3	29.1	33.1	32.0	30.6	331	457	587	517	661	661	595
50	26.9	31.5	33.1	32.8	36.1	35.0	33.7	445	621	804	717	916	916	826
70	29.39	34.3	37.5	35.5	40.9	39.5	37.7	582	819	1063	944	1218	1218	1094
95	33.5	37.3	40.8	39.0	44.7	43.4	41.6	741	1051	1369	1228	1582	1582	1430
120	35.2	41.0	44.9	43.2	49.3	48.1	46.4	917	1309	1709	1548	1984	1984	1817
150	38.6	44.6	49.0	46.2	53.9	51.8	49.2	1117	1601	2094	1837	2382	2382	2118
185	42.0	49.6	54.6	51.3	64.3	57.6	54.5	1367	1967	2577	2276	2946	2946	2642
240	46.6	55.0	64.8	56.8	71.1	68.2	64.6	1724	2491	3422	2880	3893	3893	3493
300	516	63.9	70.1	66.0	77.0	73.9	70.1	2099	3195	4170	3682	4750	4750	4264
400	56.0	71.2	78.3	73.6	86.2	82.6	78.2	2892	4152	5434	4755	6131	6131	5454
500	67.0	78.8	86.8	81.5	95.6	91.6	86.6	3558	5128	6723	5899	7589	7589	6768
630	74.0	87.6	87.6	90.2	106.7	101.7	95.7	4408	6375	8370	7322	9415	9415	8370

·Tabula 2. YJLHV YJLHY-1 ~3kV aluminium mixturae fune vena metri latio

Nominal sectionemem	Proxime exterioris diametri de conductor	Nominal Nulla crassitudine lkv	nominal 1.8/3 Nulla crassitudine	DC resistentia ad 20℃	Portans facultatem
					2 Cores		3~5 Cores
					2 Cores		3~5 Cores
mm2	mm	mm	mm	≤2/km	A	A	A	A
10	3.80	0.7	2.0	3.08	67	83	57	70
16	4.80	0.7	2.0	191	86	106	75	91
25	6.00	0.9	2.0	1.21	114	138	100	117
35	6.60	0.9	2.0	0.868	137	165	120	138
50	7.70	1.0	2.0	0.641	171	197	149	170
70	9.22	1.1	2.0	0.443	217	239	189	207
95	10.90	1.1	2.0	0.320	268	292	234	250
120	12.30	1.2	2.0	0.253	314	334	274	281
150	13.50	1.4	2.0	0.206	360	371	308	318
185	15.30	1.6	2.0	0.164	417	419	360	361
240	17.40	1.7	2.0	0.125	496	499	428	419
300	19.50	1.8	2.0	0.100	582	581	496	472
400	22.00	2.0	2.0	0.0778	673	663	582	541
500	26.00	2.2	2.0	0.0605	781	764	702	626
630	30.20	2.4	2.0	0.0469	930	901	833	711
Ambiens temperatus/Sepultus profundum 0.7m					30℃	20℃	30℃	20℃
Maxime operating temperatus conductor					90℃
