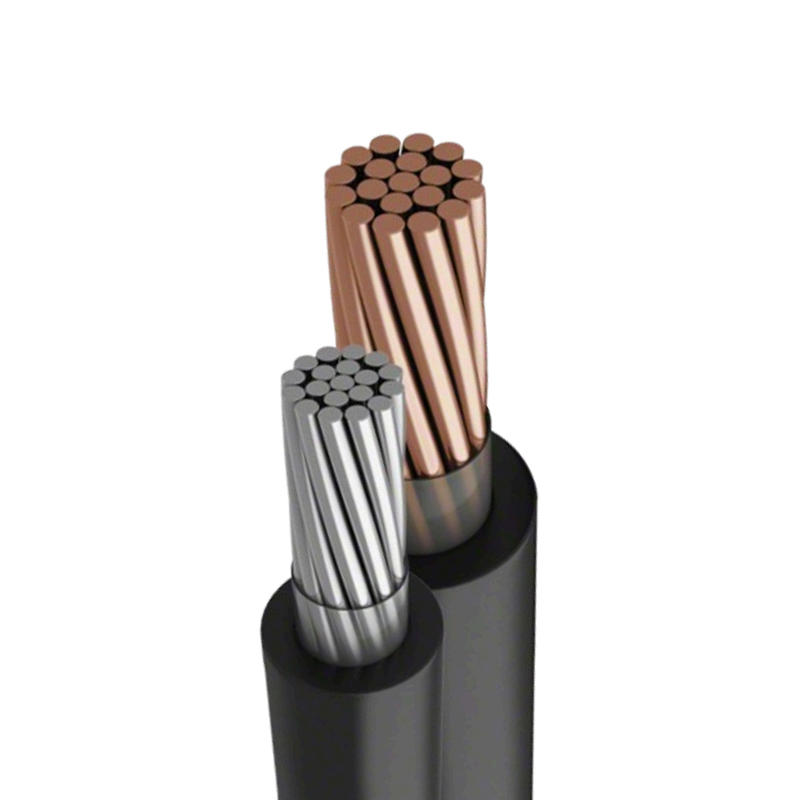

TüV EN50618 H1Z2Z2-K DC 1.5KV Solaris Cable
Ex tabellis photovoltaicis ad inverters, Sanxin solutiones cabling comprehensivas praebet. Nativus summus funes quales longi temporis firmitatem systematis photovoltaicae augent.
Commoda tua:
· Aeris tincti electrolytici (IEC 60228 Classis 5) transmissionem per periodos extensos humilem conservat.
· Electron trabis insolationem cum duplice iacu-reto designatio velit.
UV resistens, impatiens patiens, weatherproof constructionis
· Halogen-liberum proprietatum flammeum retardans
· Materiae robustae diuturnam expositionem duris ambitibus sustinent, vitae spatio 25 annorum projectae
· Futurum probatum pro rating intentione usque ad 1500V
| ARTI DATA | |||||||||
| Ratum voltage | 1.5kV DC et 1.0kVAC | ||||||||
| Maxime intentione (Umax) | 1.5kV DC (conductor/conductor, ratio non aggerata, circuitus non" sub onere) | ||||||||
| Test Voltage | 6.5kV AC secundum BSEN50395 | ||||||||
| Temperatus Rating | Certum: -40℃to 90℃ | ||||||||
| Radius tendentes minimum | Fixum:4×alterius diametri flexae:5×alterius diametri | ||||||||
| Maximum Conductor Temperature | 120℃ | ||||||||
| Fireproof perficientur | EN 60332-1-2 | ||||||||
| Oder No. | Conductor cross-section (mm²) | Conductor Construction (N/mm) | Nulla Crassitudo (mm) | Jacket | OD. (mm) | Maximilianus. | |
| Niger | Red | Crassitudo (mm) | mΩ/m* | ||||
| 100115 | 100116 | 7×1.5 | 30/0.25 | 0.9 | 1.1 | 5.58±0.1 | 13.7 |
| 100125 | 100126 | 7×2.5 | 49/0.25 | 0.85 | 0.9 | 5.54±0.1 | 8.21 |
| 100140 | 100146 | 7×4.0 | 56/0.285 | 0.95 | 0.8 | 6.0±0.1 | 5.09 |
| 100160 | 100166 | 7×6.0 | 84/0.285 | 1.02 | 0.9 | 6.87±0.1 | 3.39 |
| 100110 | 100116 | 7×10.0 | 80/0.4 | 0.7 | 0.8 | 7.13±0.1 | 1.95 |
| 100116 | 100117 | 7×76.0 | 128/0.4 | 1.1 | 1.0 | 9.42±0.1 | 1.24 |
| 100125 | 100126 | 7×25.0 | 196/0.4 | 1.1 | 1.0 | 11.4O±0.1 | 0.795 |
| 100135 | 100136 | 7×35.0 | 276/0.4 | 1.1 | 1.0 | 12.83±0.1 | 0.57 |
