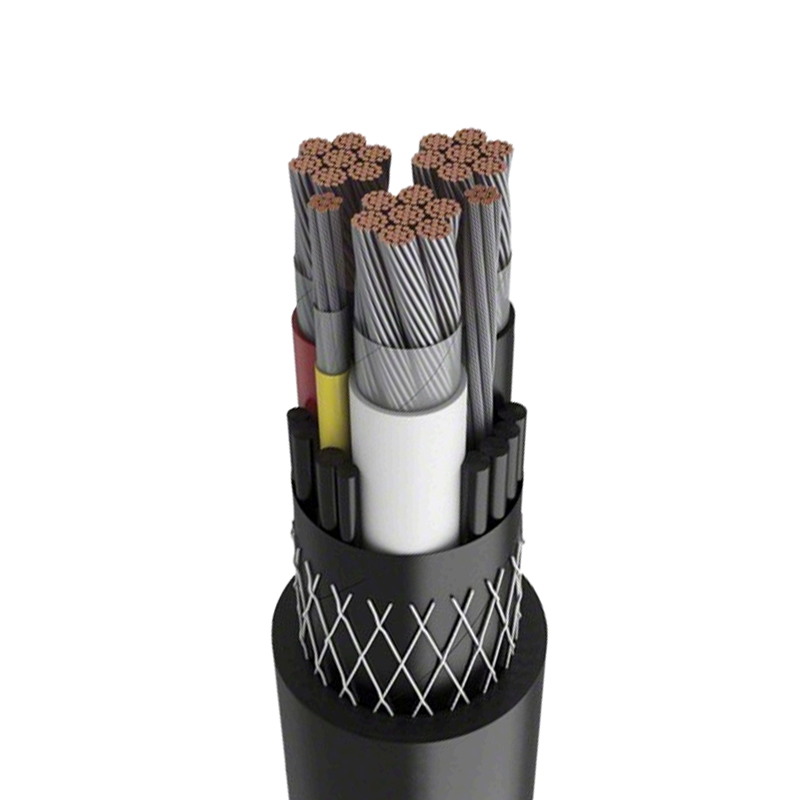

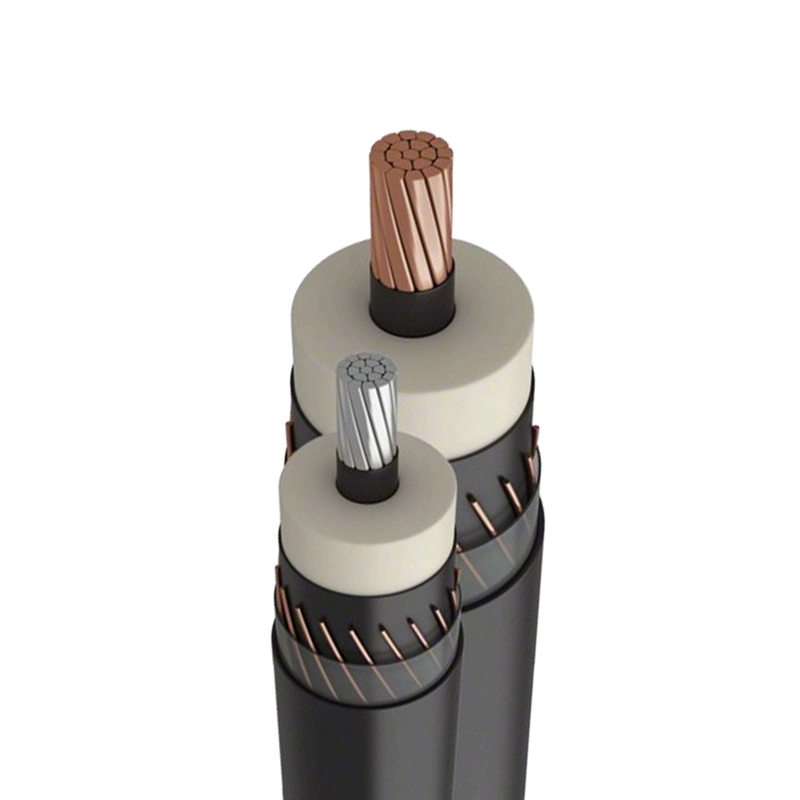

XLPE Insulae Power Cable pro Rated intentione 3.6/6kV~26/35kV
- Typus et nomen funis
| Type | Applicationem | |
| Yiv | Copper Core XLPE Insulated pvc Sheathed Power Cable | Sub tectis, cuniculum, fossam et alia loca, externas copias mechanicas sustinere non possunt. Singuli rudentes nuclei in administratione magnetica collocari non licet.
Umbraticis, cuniculum, fossam funestam vel impositionem sepultam, quaedam vires externas mechanicas sustinere possunt, sed magnas tensiones sustinere non possunt.
Sub tectis, cuniculis, fune fossam detritionem vel impositionem obrutam, etc. potest externam vim mechanicam et certas contentiones sustinere. |
| YJLV | Aluminium Core XLPE Insulated PVC condita Potentia Cable | |
| VY | Core aeris XLPE Insulated Polyethylene circumfusa Potentia Cable | |
| YJLY | Aluminium Core XLPE Insulae Polyethylene Power vaginae cable | |
| Yv22 | Copper Core XLPE Insulated Ferro Cingulum armatae PVC Power vaginae cable | |
| YJLV22 | Aluminium Core XLPE Steel Belt Armored PVC Sheathed Power Cable | |
| YIV23 | Copper Core XLPE Insulated Steel Cingulum Armored Polyethylene vaginatus Power cable | |
| YILV23 | Aluminium Core XLPE Steel Belt Armored Polyethylene vaginatus Power cable | |
| YJV32 | Copper Core XLPE Insulated Fine Steel Wire Cable | |
| YJLV32 | Aluminium Core XLPE Insulae Fine Steel Wire Cable | |
| YJV33 | Copper Core XLPE Insulated Fine Steel Wire CATAFRACTATUS Polyethylene vaginatus Power cable | |
| YJLV33 | Aluminium Core XLPE Insulae Fine Steel Wire CATAFRACTATUS Polyethylene vaginatus Power cable |
- Productio Teli funis
| Type | Cores | Ratum Voltage kV | ||||||
| 3.6/6 | 6/66/10 | 8.7/10 8.7/15 | 12/20 | 18/20 18/30 | 21/35 | 26/35 | ||
| Translatio nominalis mm2 | ||||||||
| YJV YILV YJY YJLY | 1 | 255-630 | 255-630 | 255-630 | 355-630 | 50-630 | 50-630 | 50-630 |
| 3 | 255-630 | 255-630 | 255-630 | 355-630 | 50-630 | 50-630 | 50-400 | |
| YJV22 YJLV22 YJV23 YJLV23 | 1 | 255-630 | 255-630 | 255-630 | 355-630 | 50-630 | 50-630 | 50-630 |
| 3 | 255-630 | 255-630 | 255-630 | 355-630 | 50-630 | 50-630 | 50-400 | |
| YJV32 YJLV32 YJV33 YJLV33 | 1 | 255-630 | 255-630 | 255-630 | 355-630 | 50-630 | 50-630 | 50-630 |
| 3 | 255-630 | 255-630 | 255-630 | 355-630 | 50-630 | 50-630 | 50-400 | |
Nota: Unam nucleum funem armatum aptum ad rationem DC, non ad AC systema, non magneticum stratum armatum uti vel mensuras insulationis magneticae utere.
- Construction of * * cable

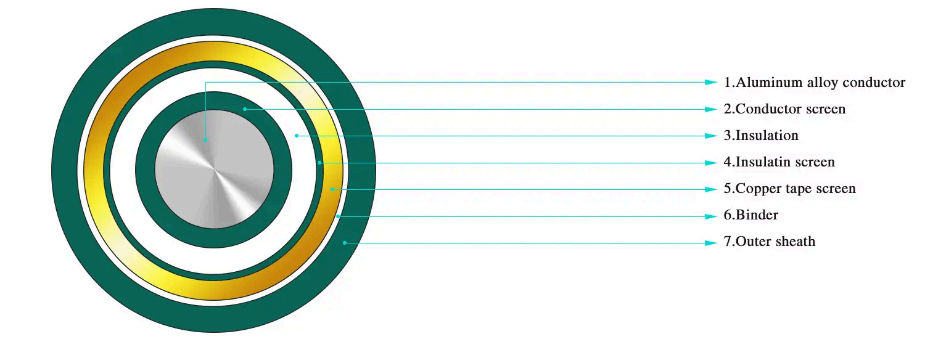

·Singulus nucleus XLPE insulationis funis potentiae pro intentione aestimata ab 3.6/6kV~26/35kV

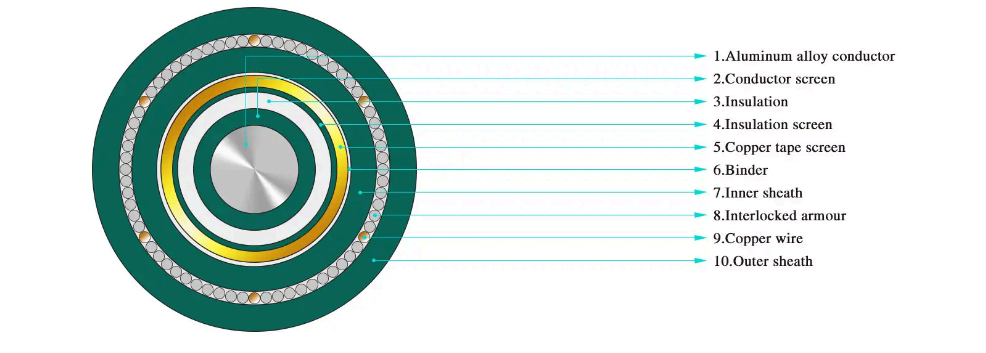

·Singula nucleus XLPE velit ferri filum armatae funis potentiae pro intentione aestimata ab 3.6/6kV~26/35kV

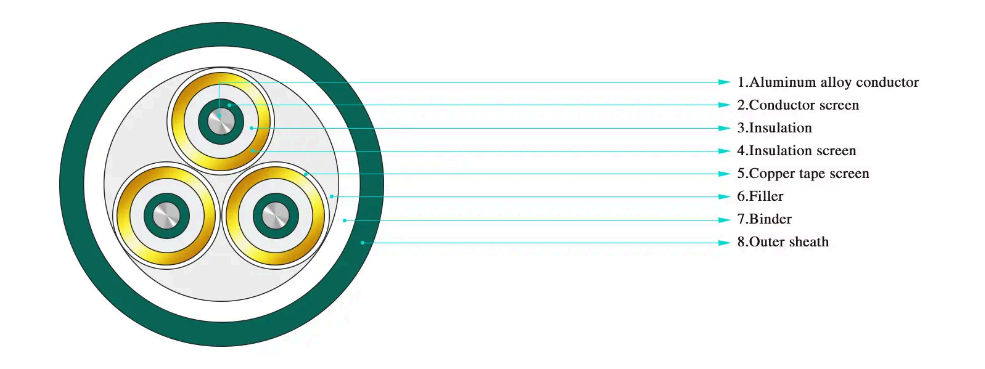

· Tres coros XLPE funem potentiae velitationis pro intentione aestimationis ab 3.6/6kV~26/35kV

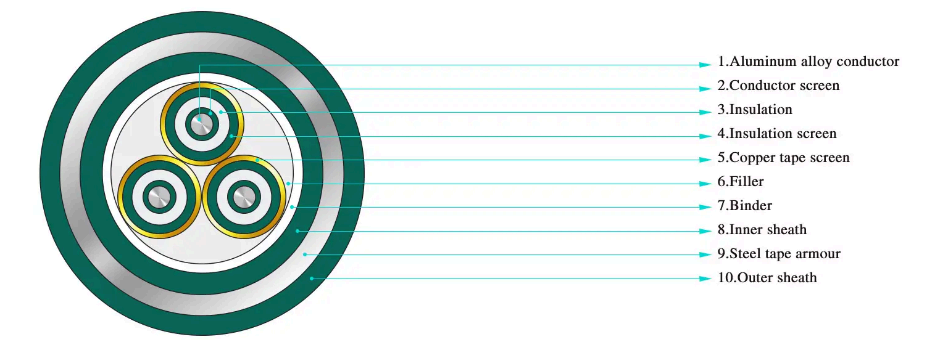

· Tres-corae XLPE taeniolae taeniolae armatae potentiae funis armatae in tres voltages ab 3.6/6kV~26/35kV aestimatae.

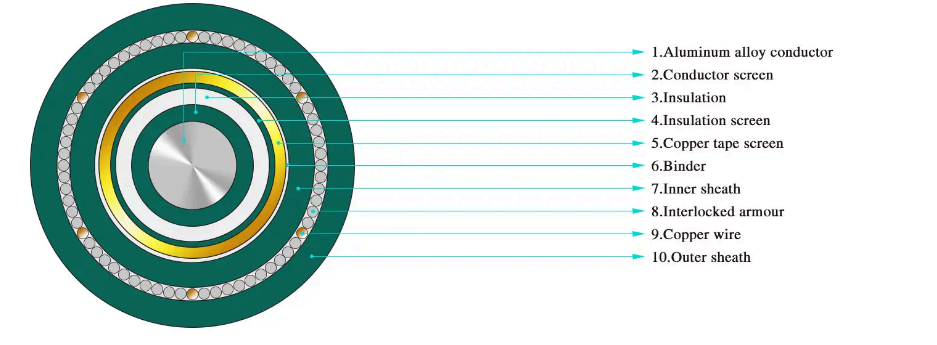

· Tres-corae XLPE filum ferri filum armatae funis potentiae pro intentione aestimata ab 3.6/6kV~26/35kV
- Typus et nomen funis
| Nominal cross- sectione transversali area mm 2 | Nulla crassities mm | YJV YJY YJLVYJLY | YJV22 YJV22 YJLV23 YJLV23 | YJV32 YJV32 YJLV32 YJLV32 | ||||||
| Proxime altiore diametri mm | Calculus pondus funem | Proxime altiore diametri mm | Calculus pondus of cable | Proxime altiore diametri mm | Calculus pondus of cable | |||||
| YJV YJY | YJLV YJLY | YJV22 YJV22 | YJLV23 YJLV23 | YJLV23 YJLV23 | YJLV32 YJLV32 | |||||
| 1×25 | 2.5 | 17.2 | 495 | -- | 21.0 | 737 | -- | 23.4 | 848 | -- |
| 1×35 | 2.5 | 18.3 | 608 | -- | 22.1 | 865 | -- | 24.5 | 980 | -- |
| 1×50 | 2.5 | 19.7 | 753 | 464 | 23.3 | 1017 | 728 | 25.7 | 1136 | 847 |
| 1×70 | 2.5 | 21.3 | 977 | 558 | 24.9 | 1260 | 841 | 27.3 | 1386 | 967 |
| 1×95 | 2.5 | 23.2 | 1256 | 676 | 26.6 | 1551 | 971 | 29.2 | 1695 | 1115 |
| 1×120 | 2.5 | 24.4 | 1498 | 770 | 27.8 | 1808 | 1080 | 30.4 | 1962 | 1234 |
| 1×150 | 2.5 | 26.2 | 1792 | 893 | 29.6 | 2123 | 1224 | 32.2 | 2285 | 1386 |
| 1×185 | 2.5 | 27.8 | 2151 | 1030 | 31.4 | 2515 | 1394 | 33.8 | 2670 | 1549 |
| 1×240 | 2.6 | 30.6 | 2730 | 1262 | 34.2 | 3129 | 1661 | 36.6 | 3297 | 1829 |
| 1×300 | 2.8 | 33.5 | 3366 | 1521 | 38.3 | 4139 | 2294 | 39.5 | 3980 | 2135 |
| 1×400 | 3.0 | 36.6 | 4216 | 1851 | 41.4 | 5056 | 2691 | 42.6 | 4885 | 2520 |
| 1×500 | 3.2 | 40.7 | 5330 | 2294 | 45.5 | 6259 | 3223 | 47.7 | 6209 | 3173 |
| 1×630 | 3.2 | 44.6 | 6708 | 2799 | 49.8 | 7769 | 3860 | 54.2 | 8044 | 4135 |
| 1×800 | 3.2 | 48.7 | 8412 | 3409 | 54.1 | 9594 | 4591 | 57.3 | 9717 | 4714 |
| 1×1000 | 3.2 | 52.7 | 10210 | 4060 | 57.9 | 11456 | 5306 | 62.3 | 11759 | 5609 |
| 3×25 | 2.5 | 34.6 | 1672 | -- | 39.2 | 2229 | -- | 40.6 | 2800 | -- |
| 3×35 | 2.5 | 37.0 | 2039 | -- | 42.0 | 2663 | -- | 44.2 | 3587 | -- |
| 3×50 | 2.5 | 39.8 | 2488 | 1621 | 44.8 | 3151 | 2279 | 47.0 | 4137 | 3265 |
| 3×70 | 2.5 | 43.6 | 3225 | 1968 | 48.6 | 3945 | 2682 | 50.8 | 5026 | 3763 |
| 3×50 | 2.5 | 47.5 | 4086 | 2346 | 52.9 | 4917 | 3169 | 56.1 | 6608 | 4860 |
| 3×120 | 2.5 | 50.3 | 4883 | 2698 | 55.7 | 5732 | 3535 | 58.9 | 7501 | 5304 |
| 3×150 | 2.5 | 54.0 | 5782 | 3086 | 59.6 | 6721 | 4011 | 62.8 | 8592 | 5882 |
| 3× 185 | 2.5 | 57.6 | 6955 | 3591 | 63.2 | 7912 | 4531 | 66.4 | 9931 | 6550 |
| 3×240 | 2.6 | 63.6 | 8767 | 4364 | 69.6 | 9881 | 5455 | 72.8 | 12085 | 7659 |
| 3×300 | 2.8 | 69.9 | 10755 | 5219 | 76.1 | 12010 | 6446 | 79.3 | 14399 | 8835 |
| 3×400 | 3.0 | 76.5 | 13406 | 6311 | 84.3 | 15605.0 | 8475.0 | 87.6 | 18531 | 11401 |
| 3×500 | 3.2 | 85.1 | 16906 | 7797 | 93.3 | 19368.0 | 10214.0 | 96.6 | 22589 | 13435 |
